Auto Crash Dummy Load Cell

Crash Dummies are vital in the field of automotive passive safety. There are many loadcells and displacement sensors in the dummy. Sunrise Instruments (SRI) has more than 30 years of experience in designing and manufacturing dummy sensors. SRI’s dummy sensors are used in most crash labs around the word. These sensors help people accurately measure the force, moment and displacement of crash dummy body parts during crash testing.






Product Detail

Product Tags

Description

SRI’s dummy sensor follows SAE-J211, SAE-J2570 and NHTSA standards and is compatible with almost all dummies in the market, including:

Hybrid III 50th Load Cell CRABI 12 Month Old Load Cell
Hybrid III 5th  Load Cell Thor 50M Load Cell
Hybrid III 95th  Load Cell Thor-5F Load Cell
Hybrid III 3 Year Old Load Cell BioRID Load Cell
Hybrid III 6 Year Old Load Cell FAA Dummy Load Cell
ES2/ES2-re Load Cell Crash Wall Load Cell
SID-2s Load Cell Other Safety Load Cell
Displacement Sensor

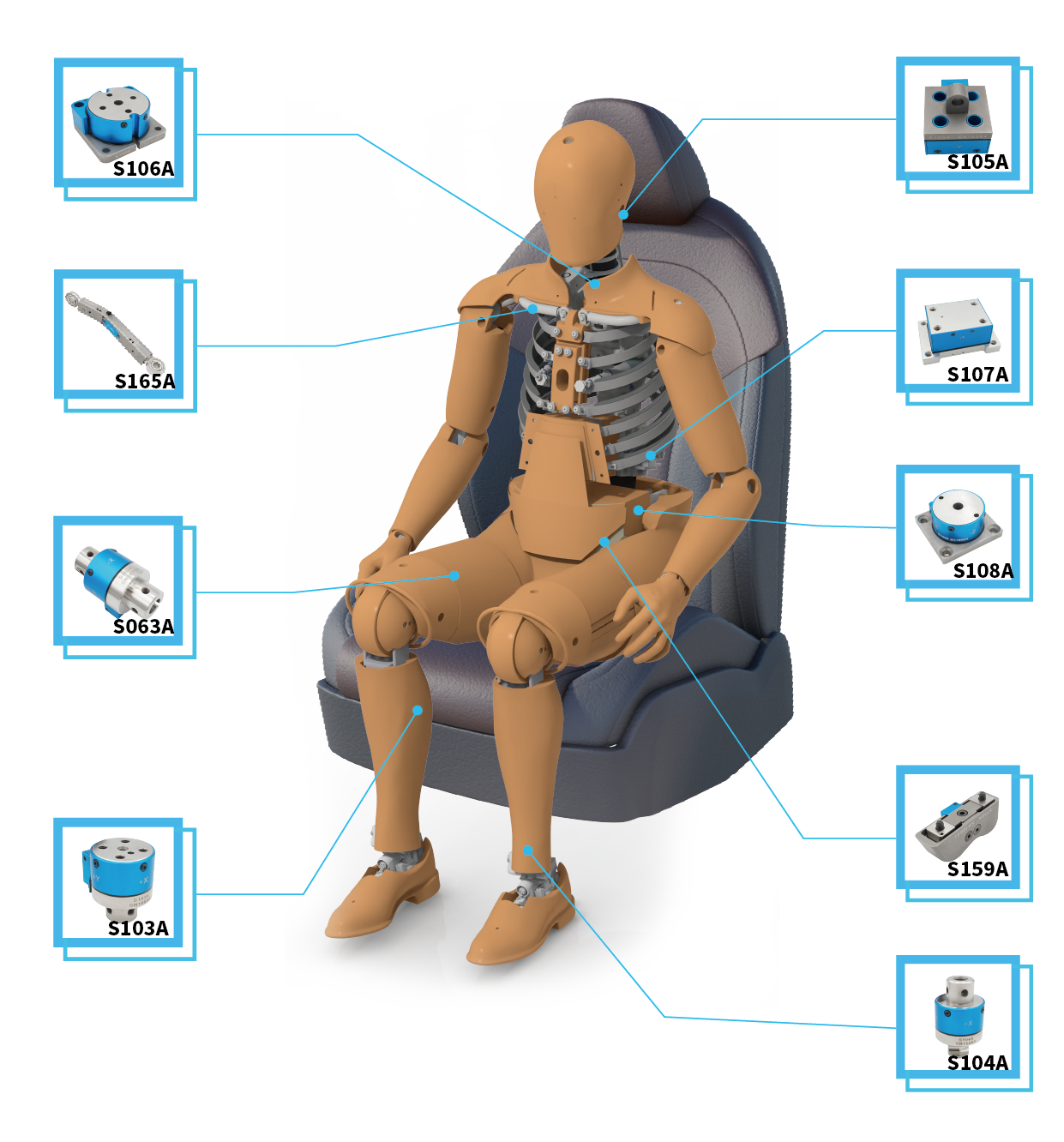

假人_画板 1



Model Selection

Crash Dummy Load Cell

Item No.  SRI Part #   Descriptions Note  NHTSA part #
1 S011B 6 axis upper  neck LC, Hybrid III For H3-05,  H3-50, H3-95 SA572-S11
2 S011A 6  axis upper neck LC, Hybrid III, SRI version
3 S301A 6  axis lower neck LC, adjustable, H3-50
4 S302A 6  axis lower neck LC, non-adjustable, H3-50 Fixed  head to spine angle
5 S401A 5  axis thoracic spine LC, H3-50 Modified  spine box
6 S405A 3  axis lumbar spine LC, Hybrid III For  H3-50, H3-95 SAE1842
7 S405E 6  axis lumbar spine LC, H3-50
8 S014A Uniaxial  femur LC, Hybrid III For  H3-05, H3-50, H3-95 SA572-S14
9 S029A 6-axis  femur LC, Hybrid III For  H3-05, H3-50, H3-95 SA572-S29
10 S406AL 2  axis clavicle link LC, left, H3-50 Measure  arm & belt force
11 S406AR 2  axis clavicle link LC, right, H3-50 Measure  arm & belt force
12 S406BL 3  axis clavicle LC, left, H3-50 Measure  arm force only
13 S406BR 3  axis clavicle LC, right, H3-50 Measure  arm force only
14 S406CL 3  axis shoulder LC, left, H3-50 Meassure  seatbelt force only
15 S406CR 3  axis shoulder LC, right, H3-50 Meassure  seatbelt force only
16 S403A 4  axis upper tibia LC (Fx, Fz, Mx, My), Hybrid III For  H3-05, H3-50, H3-95
17 S403A1 UPPER TIBIA LOAD CELL4-AXISFXFZ MXMY
18 S403E 4  axis lower tibia LC(Fx, Fz, Mx, My), Hybrid III For  H3-05, H3-50, H3-95
19 S403E1 LOWER TIBIA LOAD CELL
20 S403F 5  axis lower tibia LC(Fx, Fy, Fz Mx, My), Hybrid III For  H3-05, H3-50, H3-95
21 S403G1L 2  axis knee clevis LC, left, H3-50 Lower  leg instrumentation
22 S403G1R 2  axis knee clevis LC, right, H3-50 Lower  leg instrumentation
23 S403K1-20 Leg  tube, H3-50 Lower  leg instrumentation
24 S403K1-25 Leg  screw 1/4-28, modified Lower  leg instrumentation
25 S403M1-H3-50 16  axis lower leg instrumentation, H3-50(4 axis upper tibia and lower tibia for  Fx, Fz, Mx and My, leg tube), pair - left and right Lower  leg instrumentation
26 S403M2-H3-50 18  axis lower leg instrumentation, H3-50(4 axis upper tibia (Fx, Fz, Mx, My) and  5 axis lower tibia (Fx, Fy,Fz, Mx, My) and leg tube, pair - left and right Lower  leg instrumentation

Hybrid III 5th Load Cell

Item No.  SRI Part #   Descriptions Note  NHTSA part #
1 S011B 6 axis upper neck LC, Hybrid III For H3-05, H3-50, H3-95 SA572-S11
2 S027A 5 axis lower neck LC,  non-adjustable, H3-05 Fixed head to torso angle SA572-S27
3 S027B 6 axis Iower neck LC, non-adjustable, H3-05 Fixed head to torso angle
4 S302A 6 axis lower neck LC,  adjustable, H3-05 Adjustable head-spine angle
5 S028A 5 axis thoracic spine LC, H3-05 Accept standard spine box SA572-S28
6 S015A 5 axis lumbar spine LC, H3-05 For H3-05 SA572-S15
7 S015B 3 axis lumbar spine LC, H3-05 For H3-05
8 S014A Uniaxial femur LC, Hybrid III For H3-05, H3-50, H3-95 SA572-S14
9 S029A 6 axis femur LC, Hybrid III For H3-05, H3-50, H3-95 SA572-S29
10 S016A Anterior superior iliac spine  LC, pair, H3-05 For H3-05 SA572-S16
11 S016L Anterior superior iliac spine  LC, left, H3-05 For H3-05
12 S016R Anterior superior iliac spine  LC, right, H3-05 For H3-05
13 S409BL 3 axis clavicle LC, left, H3-05 Measure arm & seatbelt force
14 S409BR 3 axis clavicle LC, right, H3-05 Measure arm & seatbelt force
15 S403A 4 axis upper tibia LC (Fx, Fz,  Mx, My), Hybrid III For H3-05, H3-50, H3-95
16 S403E 4 axis lower tibia LC(Fx, Fz,  Mx, My), Hybrid III For H3-05, H3-50, H3-95
17 S403F 5 axis lower tibia LC(Fx, Fy, Fz  Mx, My), Hybrid III For H3-05, H3-50, H3-95
18 S403G2L 2 axis knee clevis LC, left,  H3-05 Lower leg instrumentation
19 S403G2R 2 axis knee clevis LC, right,  H3-05 Lower leg instrumentation
20 S403K2-20 Leg tube, H3-05 Lower leg instrumentation
21 S403K1-25 Leg screw 1/4-28, modified Lower leg instrumentation
22 S403M3-H3-05 16 axis lower leg  instrumentation, H3-05(4 axis upper tibia and lower tibia for Fx, Fz, Mx and  My, leg tube), pair - left and right Lower leg instrumentation
23 S403M4-H3-05 18 axis lower leg  instrumentation, H3-05(4 axis upper tibia (Fx, Fz, Mx, My) and 5 axis lower  tibia (Fx, Fy,Fz, Mx, My) and leg tube, pair - left and right Lower leg instrumentation

Hybrid III 95th Load Cell

Item No.  SRI Part #   Descriptions Note  NHTSA part #
1 S011B 6 axis upper neck LC, Hybrid III For H3-05, H3-50, H3-95 SA572-S11
2 S320A 6 axis lower neck LC, H3-95 Fixed head to spine angle SAE1794
3 S405A 3 axis lumbar spine LC, Hybrid  III For H3-50, H3-95  SAE1842
4 S430A 5 axis thoracic spine LC, H3-95  SAE1911
5 S014A Uniaxial femur LC, Hybrid III For H3-05, H3-50, H3-95 SA572-S14
6 S029A 6 axis femur LC, Hybrid III For H3-05, H3-50, H3-95 SA572-S29
7 S403A 4 axis upper tibia LC (Fx, Fz,  Mx, My), Hybrid III For H3-05, H3-50, H3-95
8 S403E 4 axis lower tibia LC(Fx, Fz,  Mx, My), Hybrid III For H3-05, H3-50, H3-95
9 S403F 5 axis lower tibia LC(Fx, Fy, Fz  Mx, My), Hybrid III For H3-05, H3-50, H3-95
10 S403G3L 2 axis knee clevis LC, left,  H3-95 Lower leg instrumentation
11 S403G3R 2 axis knee clevis LC, right,  H3-95 Lower leg instrumentation
12 S403K3-20 Leg tube, H3-95 Lower leg instrumentation
13 S403K1-25 Leg screw 1/4-28, modified Lower leg instrumentation
14 S403M5-H3-95 16 axis lower leg  instrumentation, H3-95(4 axis upper tibia and lower tibia for Fx, Fz, Mx and  My, leg tube), pair - left and right Lower leg instrumentation
15 S403M6-H3-95 18 axis lower leg  instrumentation, H3-95(4 axis upper tibia (Fx, Fz, Mx, My) and 5 axis lower  tibia (Fx, Fy,Fz, Mx, My) and leg tube, pair - left and right Lower leg instrumentation

Hybrid III 3 Year Old Load Cell

Item No.  SRI Part #   Descriptions Note  NHTSA part #
1 S019A 6 axis upper/lower neck LC, H  III 3yr Attention to polarity SA572-S19
2 S021A 2 axis shoulder LC, Hybrid III  3yr For Hybrid III 3yr SA572-S21
3 S020A 6 axis lumbar spine LC, Hybrid  III 3yr For Hybrid III 3yr SA572-S20
4 S018A 2 axis pubic LC, Hybrid III 3yr For Hybrid III 3yr SA572-S18
5 S022A Uniaxial acetabulum LC, Hybrid  III 3yr For Hybrid III 3yr SA572-S22
6 S017A 2 axis ASIS LC, Pair for left  and right, Hybrid III 3yr For Hybrid III 3yr SA572-S17

Hybrid III 6 Year Old Load Cell

Item No.  SRI Part #   Descriptions Note  NHTSA part #
1 S011B 6 axis upper neck LC, Hybrid III For H3-05, H3-50, H3-95 SA572-S11
2 S026A 6 axis lower neck LC, Hybrid III  6yr For Hybrid III 6yr SA572-S26
3 S012A 6 axis lumbar spine LC, Hybrid  III 6yr For Hybrid III 6yr SA572-S12
4 S013A 2 axis ASIS LC, Pair for left  and right, Hybrid III 6yr For Hybrid III 6yr SA572-S13
5 S010A Uniaxial femur LC, Hybrid III  6yr For Hybrid III 6yr SA572-S10

ES2/ES2-re Load Cell

Item No.  SRI Part #   Descriptions Note  NHTSA part #
1 S070A 6 axis upper neck LC, ES2/ES2-re For ES2/ES2-re SA572-S70
2 S071A 6 axis lower neck LC, ES2/ES2-re For ES2/ES2-re SA572-S71
3 S074A 4 axis T12 LC, ES2/ES2-re For ES2/ES2-re SA572-S74
4 S440A 4 axis back plate LC, ES2 For ES2
5 S073A 4 axis back plate LC, ES2-re For ES2-re SA572-S73
6 S072A 3 axis shoulder LC, ES2/ES2-re For ES2/ES2-re SA572-S72
7 S075A Uniaxial abdominal LC,  ES2/ES2-re For ES2/ES2-re SA572-S75
8 S076A 3 axis lumbar spine LC,  ES2/ES2-re For ES2/ES2-re SA572-S76
9 S076B 3 axis lumbar spine LC, ES2/ES2-re，High Capacity For ES2/ES2-re SA572-S76
10 S077A Uniaxial pubic LC, ES2/ES2-re For ES2/ES2-re SA572-S77
11 S029B 6 axis femur LC, aluminum cap,  ES2/ES2-re For ES2/ES2-re

SID-2s Load Cell

Item No.  SRI Part #   Descriptions Note  NHTSA part #
1 S011B 6 axis upper neck LC, Hybrid III For H3-05, H3-50, H3-95 SA572-S11
2 S060A 6 axis lower neck LC, SID-2s Fxied head to spine angle SA572-S60
3 S060E 6 axis lower neck LC,  Adjustable, SID-2s Adjustable d head to spine angle
4 S060EK 6 axis lower neck LC,  Adjustable, SID-2s, DTI DAS Adjustable d head to spine angle
5 S062A 3 axis shoulder LC, SID-2s For SID-2s SA572-S62
6 S064A 6 axis lumbar spine LC, SID-2s For SID-2s SA572-S64
7 S066A Uniaxial iliac wing LC, SID-2s For SID-2s SA572-S66
8 S068A Uniaxial acetabulum LC, SID-2s For SID-2s SA572-S68
9 S029A 6 axis femur LC, Hybrid III For H3-05, H3-50, H3-95 SA572-S29
10 S069A Uniaxial Pubic LC, SID-2s For SID-2s
11 S5769AL Upper femur LC, left, SID-2s For SID-2s
12 S5769AR Upper femur LC, right, SID-2s For SID-2s
13 S3676A Uniaxial rib LC, SID-2s For SID-2s

Q Series Load Cell

Item No.  SRI Part #   Descriptions Note  NHTSA part #
1 S407A 6 axis neck LC, Q series Upper & lower neck, lumbar
2 S407B 6 axis neck LC, High capacity, Q  series High capacity, steel version
3 S407F ASIS load cell, Fx,My, Q6/Q10
4 S407GL Shoulder/lumbar load cell, Left,  Fx, Fy, Fz, Q10
5 S407GR Shoulder/lumbar load cell,  Right, Fx, Fy, Fz, Q10
6 S407H Acetabulum load cell, Fy, Q10 High capacity, steel version

CRABI 12 Month Old Load Cell

Item No.  SRI Part #   Descriptions Note  NHTSA part #
1 S023A 6 axis neck/lumbar LC, Crabi  12/18 month For Crabi 12/18 month  SA572-S23
2 S025A 2 axis shoulder LC, Crabi 12  month old For Crabi 12 month SA572-S25
3 S024A 2 axis pubic LC, Crabi 12 month  old For Crabi 12 month SA572-S24

Thor-5F Load Cell

Item No.  SRI Part #   Descriptions Note  NHTSA part #
1 S105A 6 axis upper neck LC, Thor-5F For Thor-5F SA572-S105
2 S106A 6 axis lower neck LC, Thor-5F For Thor-5F SA572-S106
3 S165A 4 axis clavicle LC, left,  Thor-5F For Thor-5F SA572-S165
4 S166A 4 axis clavicle LC, right,  Thor-5F For Thor-5F SA572-S166
5 S107A 6 axis thoracic spine LC,  Thor-5F For Thor-5F SA572-S107
6 S159A 2 axis ASIS LC, left, Thor-5F For Thor-5F SA572-S159
7 S160A 2 axis ASIS LC, right, Thor-5F For Thor-5F SA572-S160
8 S109A 3 axis acetabulum LC, left,  Thor-5F For Thor-5F SA572-S109
9 S108A 3 axis acetabulum LC, right,  Thor-5F For Thor-5F SA572-S108
10 S063A 6 axis femur LC, Thor-5F For Thor-5F SA572-S63
11 S103A 5 axis upper tibia LC, Thor-5F For Thor-5F SA572-S103
12 S104A 5 axis lower tibia LC, Thor-5F For Thor-5F SA572-S104

Thor 50M Load Cell

Item No.  SRI Part #   Descriptions Note  NHTSA part #
1 S112A Uniaxial skull spring LC,  Thor-50M Compression only SA572-S112
2 S112D Face load cell, Fx, Thor-50M
3 S112F Clavicle load cell (2X) FX & (2X) FZ, Thor-50M
4 S112FL Clavicle load cell (2X) FX & (2X) FZ, left, Thor-50M
5 S112FR Clavicle load cell (2X) FX & (2X) FZ, right, Thor-50M
6 S112M ASIS load cell, Fx ,My, Thor-50M
7 S119AU 2 Axis Asis load cell,Fx,My,Thor-50M For Thor-50M SA572-S119
8 S110A 6 axis upper neck LC, Thor-50M For Thor 50M SA572-S110
9 S111A 6 axis lower neck LC, Thor-50M Non-adjustable angle SA572-S111
10 S127A 5 axis thoracic spine LC,  Thor-50M For Thor 50M SA572-S127
11 S128A 3 axis acetabulum LC, left,  Thor-50M For Thor 50M SA572-S128
12 S129A 3 axis acetabulum LC, right,  Thor-50M For Thor 50M SA572-S129
13 S120A 6 axis femur LC, Thor-50M For Thor 50M SA572-S120
14 S032A 5 axis upper tibia LC, Thor-50M Lower leg instrumentation SA572-S32
15 S033A 5 axis lower tibia LC, Thor-50M Lower leg instrumentation SA572-S33

BioRID-II Load Cell

Item No.  SRI Part #   Descriptions Note  NHTSA part #
1 S6014A 6 axis upper neck LC, BioRID-II For BioRID-II
2 S6014B 3 AXIS T1 THORACIC VERTEBRAE  LOADCELL BIORID  For BioRID-II

FAA Dummy Load Cell

Item No.  SRI Part #   Descriptions Note  NHTSA part #
1 S470B 6 axis lumbar LC, FAA dummy For FAA dummy

Crash Wall Load Cell

Item No.  SRI Part #   Descriptions Note  NHTSA part #
1 S989A1 3 axis crash wall LC, 300kN,  standard, 9.2kg For rigid barrier
2 S989B1 3 axis crash wall LC, 50kN,  light weight, 3.9kg For MPDB barrier
3 S989C 3 axis crash wall LC,  400kN,  9kg Different configuration

Other Safety Load Cell

Item No.  SRI Part #   Descriptions Note  NHTSA part #
1 S6011A 6 axis seat pan load cell,  44480N For general testing
2 S6011B 6 axis seat pan load cell, 10kN For general testing

Displacement Sensor

Item No.  SRI Part #   Descriptions Note  NHTSA part #
1 S6107AL Knee slider string potentiometer, left For Hybrid III
2 S6107AR Knee slider string  potentiometer, right For Hybrid III
3 S6107AU Knee slider string potentiometer, universal
4 S6107B Chest potentiometer, H3 For Hybrid III
5 S6107B3 Chest deflection transducer assembly, H3-50 78051-317
6 S6107B2 Chest deflection transducer assembly, H3-05
7 S6107B4 Chest deflection transducer assembly, H3-95
8 S6107C Potentiometer, OD 3/8", Length 3",ES2&SID2S
9 S6107C2 Potentiometer, OD 3/8", Length 3", Rib1 & 6, SID2s
10 S6107C3 Potentiometer, OD 3/8", Length 3", Rib2-5, SID2s
11 S6107D Potentiometer, OD 1/2", Thor
12 S6107E String Potentiometer, 51mm, Q
13 S6107H3 Potentiometer,  assembly, ES-2
14 S6107F Chest Potentiometer, OD 1/2", H3-03, H3-06 For Hybrid III
15 S6107F3 Chest potentiometer Assembly  H3-03
16 S6107F4 Chest potentiometer Assembly H3-06 For Hybrid III
17 S6201B3 IR TRACC  1D Assembly, Q6
18 S6201C3 IR TRACC  2D Assembly, Q10

Displacement Sensor

Item No.  SRI Part #   Descriptions Note  NHTSA part #
1 S901A Seatbelt load cell, 16kN, 97g Meet E-NCAP requirement
2 S901B Seatbelt loadcell 500N
3 S901C Seatbelt loadcell 16KN
  • Previous:
  • Next:

    • Products categories

    Leave Your Message:

    Write your message here and send it to us.
    Hit enter to search or ESC to close
