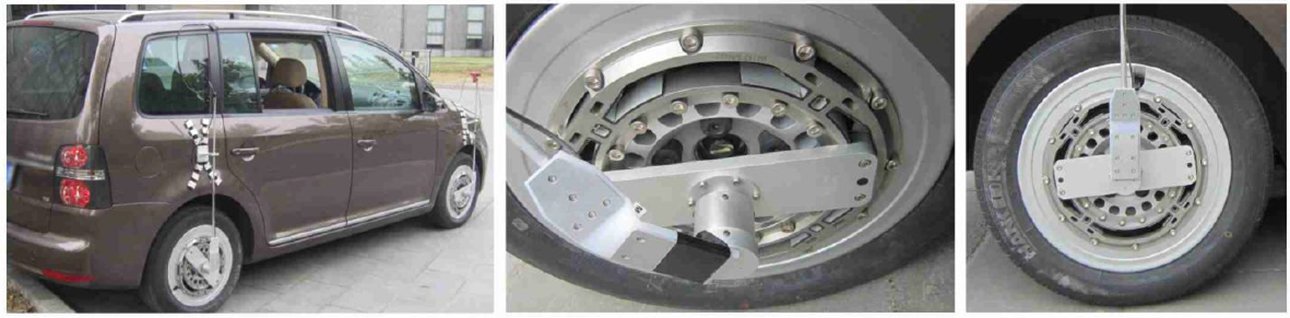

The 6 axis wheel sensor measures the wheel forces and moments. The six components of the total wheel load are structurally decoupled to provide independent outputs, so post-data correction becomes unnecessary. The low voltage output is amplified by an on-board amplifier module (41130-EB-00). The amplified signal is then wired to a slip ring (41150-RING-00), such that the data can be transmitted to the data acquisition system (iDAS). The sensor fits 13” to 21” wheel.

The loadcell is completely sealed to provide excellent environment protection, and could be used for on-road measurement on a rainy day.

Engineering service is provided for the wheel modification and the design of relevant adaptors to replicate the geometry of the original wheel.
